LE115T
This is the smallest, most integrated 100GbE media converter in the business field!
- Compact 1Usize (providing a small-footprint design)
- The pluggable optical module is adopted in the 100G interface When converting 100GBASE-SR10 from 100GBASE-LR4 When extending 100GBASE-LR4 * 100GBASE-SR4 will be supported
- Low power consumption (up to 140 W), lightweight (6 kg maximum)
- Equipped with the multiplexed pluggable AC/DC power and pluggable FAN (speed automatically controlled) as standard
LE115T
Features
- 100GbE media converter(Layer1 device)
- Compact 1U and 19-inch rack size

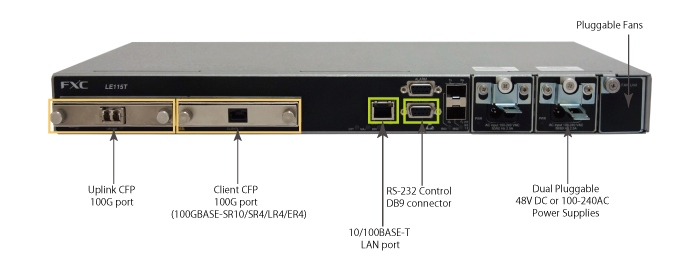

- Front implementation of all interfaces that provides excellent operability and easy maintenance work
- 3R Corresponding to compatible media converter connecting 2 port CFPs to each other
3R:Reamplifying, Reshaping - Low-latency: less than 2μsec/unit
- No restrictions on the transportable frame length(Frame transparency 60byte～ 32,700byte frame)
- Simple configuration and management
- Increased set of management functions
- LOS Propagation function (link-loss transfer function)
- Automatic Laser Shutdown (ALS function)
- Web GUI(HTTP/HTTPS), SNMP, Syslog, RADIUS, telnet/ssh, Console
- Inband GCC remote management function
- Performance function (optical input/output monitor, line quality monitor)
- Supports the FEC (Forward Error Correction) function
- Loop-back test function, PRBS test function
- Remote power discontinuity detection function (Dying gasp)
- Provides the power duplication (AC/DC power selectable) and FAN (speed automatically controlled) as standard
* The FAN unit has an automatic speed control mechanism that reduces power consumption - Low power consumption: less than 140W, Downsizing and lightening: 1U, less than 6.0kg
- Equipped with the rack mount kit as standard
- Approved by VCCI, and compatible with the RoHS Directive

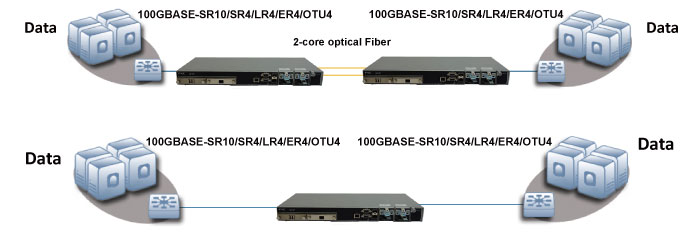

Network configuration example
Spec
| Models | LE115T | |
|---|---|---|
| Local interface | Number of Ports | 1 |
| Interface | 100GBASE-SR10/LR4/ER4*100GBASE-SR4 will be supported. | |
| Data rate | 100Gbps | |
| Connecter | CFP transceiver | |
| frame length | No restrictions | |
| Remote interface(Dark Fiber port) |
Number of Ports | 1 |
| Wavelength | Depend on selection CFP transceiver | |
| Applicable optical fiber | Depend on selection CFP transceiver | |
| Light power dissipation | Depend on selection CFP transceiver | |
| Management port | Console port | Interface: RS-232, DB-9 Connector: 9pin, TypeD, Transfer rate:9600bps |
| Management port | 10/100 BASE-T port | |
| Remote management channel | GCC （General Communication Channel） | |
| Management IP address | Manual Configuration(Console) | |
| Alarm display, Monitoring |
Alarm | Viewable 512 events immediately(GUI), timestamp |
| Power | Power supply Hot Swap |
AC:100V～240V／AC 50/60Hz (Max.2.5A) DC:-48V DC(Max.5A) |
| Power consumption | 140W | |
| Dimensions Physical specification |
Dimensions | 440mm(W)x230mm(D)x44mm(H), 1U |
| Weight(all components mounting) | Max.6.0kg | |
| Operating Temperature/Humidity | 0℃～45℃/max.90％ (no condensation) |
|
| Approvals | CE/FCC/VCCI/RoHs Compliant | |
