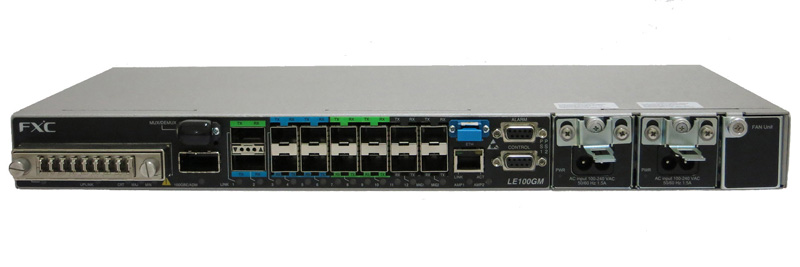

LE100GM
100G Muxponder solution
The device features the compact 1U size and the 100G transport capacity,
communicates bi-directionally through 1-core optical fiber, and provides
the muxponder/transponder solutions responding to 10G/40G/100G
multiservices. LightEdge 100GM is the muxponder/transponder compatible
with 10G/40G/100G multiservices.
LE100GM is the FXC’s 100G solution and the 100G unit based on the
standard 1U size, and can consolidate the multirate and multiprotocol
10G/40G/100G services into one 100G OTU4 uplink.
Two 100G solutions proposed by FXC are described below.
• 100G muxponder for metro network
• 100G transponder
LE100GM
Features
- Muxponder/transponder solutions responding to the 10G/40G/100G multiservices (Layer1 device)
- Allowable loss:33 dB maximum
- Compact 1U and 19-inch rack size
- Front implementation of all interfaces that provides excellent operability and easy maintenance workr
- Supported local interface: 100GBASE-SR10, 40GBASE-SR4/LR4, 10GBASE-SR/LR/ER, STM-64/OC-192, 8G FC
- No restrictions on the transportable frame length(Frame transparency 60byte～ 32,700byte frame)
- Provides long-distance transport
- No restrictions on the transportable frame length
- Simple configuration and management
- Increased set of management functions
- LOS Propagation function (link-loss transfer function)
- Automatic Laser Shutdown (ALS function)
- Web GUI (HTTP/HTTPS), SNMP, Syslog, RADIUS, telnet/ssh, Console
- Inband GCC or OSC remote management function
- Performance function (optical input/output monitor, line quality monitor)
- Supports the FEC (Forward Error Correction) function
- Loop-back test function, PRBS test function
- Remote power discontinuity detection function (Dying gasp)
- Provides the power duplication (AC/DC power selectable) and FAN (speed automatically controlled) as standard * The FAN unit has an automatic speed control mechanism that reduces power consumption
- Low power consumption: less than 200W, Downsizing and lightening: 1U, less than 6.0kg
- Equipped with the rack mount kit as standard
- Approved by VCCI, and compatible with the RoHS Directive

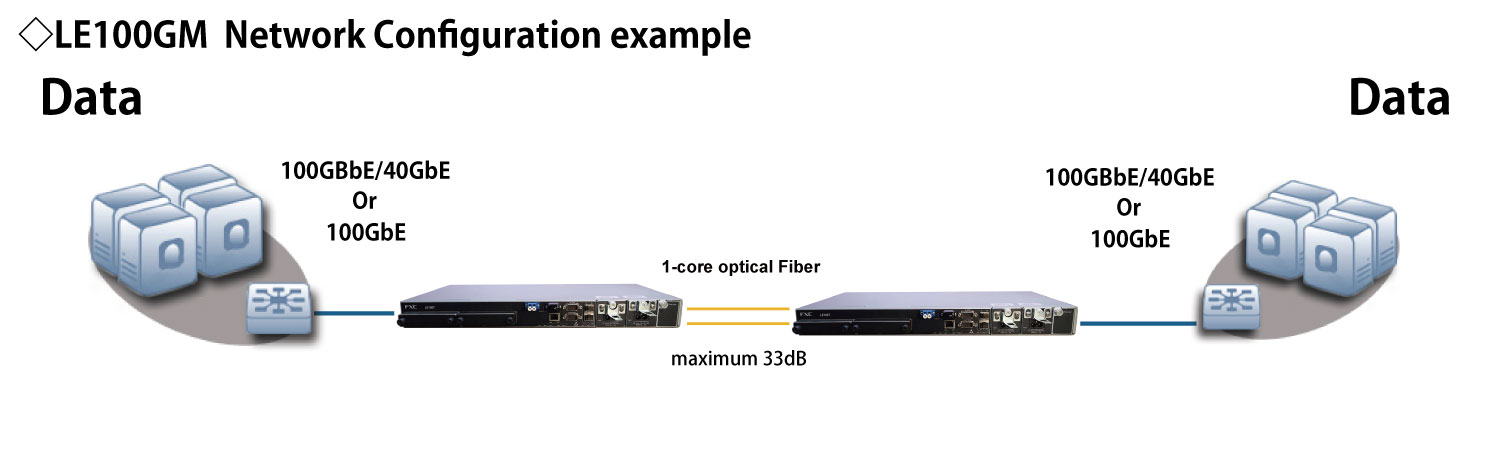

Network configuration example
Spec
| Models | LE100GM | |
|---|---|---|
| Local interface | Number of Ports | 13 |
| Interface | 100GBASE-SR10, 40GBSE-SR4/LR4,10GBASE-SR/LR/ER, STM-64/OC-192, 8G FC | |
| Data rate | 10Gbps～100Gbps | |
| Connecter | SFP+/QSFP+/CXP transceiver | |
| Remote interface |
Number of Ports | 1 |
| Wavelength | DWDM C-Band ITU-T 50GHz grid | |
| Connector | CFP transceiver | |
| COM port(Dark Fiber connection port) | Number of Ports | 1 |
| Applicable optical fiber | SMF, DSF | |
| Light power dissipation | Max.33dB | |
| Management | RS232 Control port | Interface: RS-232, DB-9 |
| port | Connector: 9pin, TypeD, Transfer rate:9600bps) | |
| Management port | 10/100 BASE-T port | |
| Remote management channel | OSC(Optical Supervisory Channels) | |
| Monitoring wavelength | 1490/1510nm | |
| Management IP address | Manual Configuration(Console) | |
| Alarm display, Monitoring | Alarm | Viewable 512 events immediately(GUI), timestamp |
| Power | Power supply Hot Swap |
AC:100V～240V／AC 50/60Hz (Max.2.5A) DC:-48V DC(Max.5A) |
| Power consumption | Max. 200W | |
| Dimensions Physical specification |
Dimensions | 440mm(W)x230mm(D)x44mm(H), 1U |
| Weight(all components mounting) | Max.6.0kg | |
| Operating Temperature/Humidity | 0℃～45℃/max.90％ (no condensation) |
|
| Approvals | CE/FCC/VCCI/RoHs Compliant | |
