FXC6528
L2+ stackable switch with 10G uplink and management function High cost performance. Stackable switch with L2+ management function

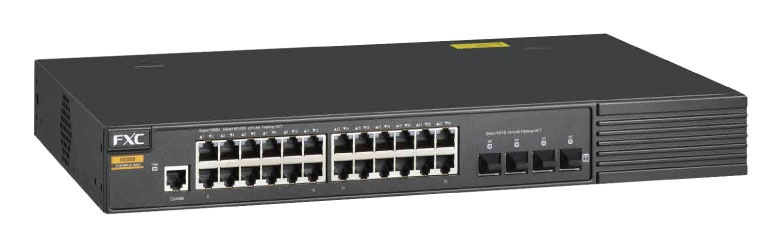

FXC6528
Features
- The FXC6528 is equipped with 24 RJ45 ports and 4 SFP+ ports
- Supports jumbo frames (up to 9,216 bytes)
- Supports 16,000 MAC address entries and 1000 ARP entries
- Can learn up to 500 dynamic routes
- Supports management console ports and inbound management (SNMP, HTTP, HTTPS, Telnet, SSH)
- Equipped with RIP and OSPF as standard for dynamic routing
- Supports IPv6 management and IPv6 routing
- Supports a redundancy system with VRRP
- Supports redundancy and port expansion through stacking of FXC65xx series units
- Routing function ON/OFF via CLI
- Equipped with ITU-T-compliant ring protocol for smart redundant configuration
- Loop detection and fiber transmission failure detection via link detection function
- Equipped with IPv4/IPv6 ACL and MAC ACL for L2 to L4 packet control in both IN and OUT directions
- Supports CoS/DSCP, QoS scheduling, and policy-map (CBWFQ) for flexible setting of traffic policies with QoS
- Supports ARP inspection and IP source guard function to provide countermeasures against access by unauthorized users and ARP spoofing attacks
- Supports IEEE802.3az-compliant EEE power management
- Compliant with RoHS directi
Spec
| Models | FXC6528 | |
|---|---|---|
| Standards | IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3s、IEEE802.3x、IEEE802.1p、IEEE802.1Q、 IEEE802.1D、IEEE802.3w | |
| Data Transfer Speed | 10/100/1000/10000Mbps(CSMA/CD) | |
| Ethernet Ports | 10BASE-T/100BASE-TX/1000BASE-T （Auto MDI/MDI-X function settings） |
|
| 24 | ||
| Duplex | Full/half | |
| Auto Negotiation | Supported （Transfer speed, Full/Half can be set for each ports） |
|
| Expansion Slots | 1G/10G SFP/SFP+×4 | |
| Features | Switching Mode | Store & Forward Method |
| Throughput | 95.2Mpps | |
| Switching capacity | 128Gbps | |
| Buffer Size | 1.5Mbytes | |
| Flash Memory | Flash: SPI 256 MB / RAM: DDRⅡ512MB | |
| MAC Address | 16,000 | |
| VLAN | VLAN(ID: 1～4094), 802.1q VLAN, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Subnet-based VLAN, Private VLAN, Voice VLAN, GVRP, Guest VLAN, QinQ, | |
| PortTrunk (Static/trunk) |
Static trunk,LACP Static 8 ports(Max), LACP 256 Group(Max) |
|
| Multicast | IGMP v1/ v2, IGMP Snooping v1/ v2, querier, multicast filter, fast leave | |
| Spanning Tree | IEEE802.1D STP , IEEE802.1w RSTP ,IEEE802.1s MSTP, BPDU guard,BPDU filter, root guard, TC guard, TC protection, edge-port, port fast | |
| Ring protocol | G.8032 ERPS | |
| QoS | CoS/802.1p/DSCP,TOS, Priority Queuing, policy-map(CBWFQ)、QoS shaping, QoS scheduling (SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR) | |
| Port configuration | Port enabled and disabled, Auto-MDI/MDIX, Auto- Negotiation, Speed/Duplex/MDI固定,HOL blocking configuration、HOL、 Flow Controller 、Port Status, |
|
| Jumbo flame | 9,216bytes(MAX) | |
| Bandwidth Control | 64kbps～10,000,000kbps | |
| Management | Web Management, CLI(RJ45), Telnet/ssh, SNMP(v1/v2c/v3), RMON,sFlow, LLDP, Syslog(IPv4/v6), SNMP over IPv6, IPv6 Telnet/ssh | |
| Security | IEEE802.1x, tacacs+, Dynamic/Guest VLAN, MAC based authentication, MAC address filtering, Port security, IPv4/v6 ACL, MAC ACL, DHCP Snooping, IP Source Guard, ARP Inspection, HTTPS, Dos Protection, CPU Protection |
|
| Stack | 10G stacking(Up to 4 stack members), DAD detection, stack load-balancing, * dedicated SFP+ direct-attach cable avaolable. |
|
| L2+feature Others | IPv4/v6 static routing, OSPFv2/v3, RIP/RIPng, IPv4/v6 VRRP, DHCP server, DHCP option82, DHCPrelay agent, NTP server, FTP server, SNTP, DHCP client, loop-detection/blocking function, port mirroring, storm control, NTP client, ICMP v4/v6, Traceroute IPv4/v6, IPv6 ND/NA, ZTP |
|
| Power supply | Rated input | AC100-240V、50/60Hz |
| Max. Input | 0.4A | |
| Max. Consumption | 23.0W | |
| Max.Calorific Value | 19.8Kcal/h | |
| Required Humidity& Temp. | During Operation | 0～50℃/10～90% ※Non-Condensing |
| During Non- Operation | -40～70℃/5～95% ※Non-Condensing |
|
| Size | 443mm(W)×268mm(D)×44.5mm(H) | |
| Weight | 3.23kg | |
| Standards | EMI | VCCI class A |
