LE100AD
FXC Ultra-small ADM Box Generating 200Gbps Bandwidth despite the 1U Size
Providing 200G of large-capacity communication at 1U size that fits into the smallest space!
Optical transport device that enhances storage efficiency for communication between the bases!
- LE100AD is the FXC’s 200G solution and the 200G unit based on the standard 1U size, and can consolidate the multirate and multiprotocol 10G/40G/100G services into two 100G OTU4 uplinks.
- The characteristics of LE100AD are flexibility and modular performance.
Distinguishing itself from other products, the following three methods enable LE100AD to multiplex mixed (up to 16) services.
Point to Point", "Point to Point with 1+1 protection", "Linear Add/Drop, ring topology" - LE100AD encrypts the data that passes through the communication between the bases, and provides an advantage in terms of security.
- Power consumption: Up to 250 W
LE100AD

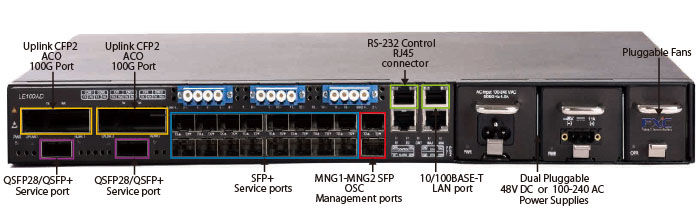

Features
- Muxponder/transponder solutions responding to the 10G/40G/100G multiservices (Layer1 device)
- Compact 1U and 19-inch rack size
- Front implementation of all interfaces that provides excellent operability and easy maintenance work
- Supported client interface: 100GBASE-SR4/LR4, 40GBASE-SR4/LR4, 10GBASE-SR/LR/ER, STM-64/OC-192, 8G/16G FC, OTU2/OTU2e/OTU4
- Provides long-distance transport
- No restrictions on the transportable frame length
- AES-256 Layer-1 encryption function (option)
- Simple configuration and management
- Increased set of management functions
- LOS Propagation function (link-loss transfer function)
- Automatic Laser Shutdown (ALS function)
- Web GUI (HTTP/HTTPS), SNMP, Syslog, RADIUS, telnet/ssh, Console
- Inband GCC or OSC remote management function
- Performance function (optical input/output monitor, line quality monitor)
- Supports the FEC (Forward Error Correction) function
- Loop-back test function, PRBS test function
- Remote power discontinuity detection function (Dying gasp)
- Provides the power duplication (AC/DC power selectable) and FAN (speed automatically controlled) as standard
※The FAN unit has an automatic speed control mechanism that reduces power consumption - Equipped with the rack mount kit as standard
- Provides expansion by connection with LightEdge4716
※Provides installation of an amplifier and Mux/Demux as an option
※32G FC will be supported in the future.

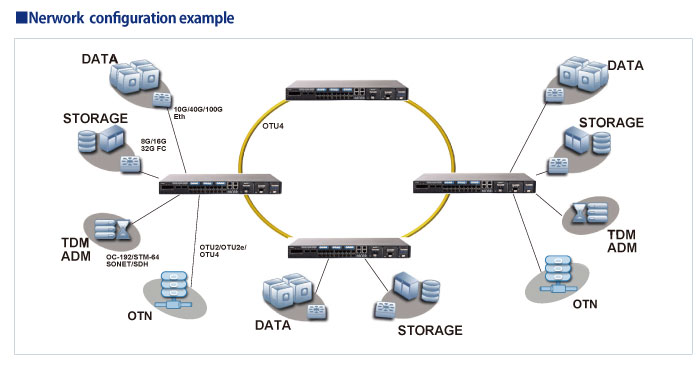

Network configuration example
Spec
| Models | LE100AD | |
|---|---|---|
| Local interface | Number of Ports | 18 |
| Interface | 100GBASE-SR4/LR4. 40GBASE-SR4/LR4, 10GBASE-SR/LR/ER, STM-64/OC-192, 8G/16G FC, OTU2/OTU2e, OTU4 | |
| Data rate | 8Gbps～112Gbps | |
| Connecter | SFP+/QSFP+/QSFP28 transceiver | |
| frame length | No restrictions | |
| Remote interface | Number of Ports | 2 |
| Wavelength | DWDM C-band ITU-T 50GHz grid | |
| Applicable optical fiber | SMF, DSF | |
| Light power dissipation | Depend on selection CFP2 transceiver | |
| Management port | Console port | Interface: RS-232, RJ-45 Connector: 8pin, TypeD, Transfer rate:9600bps |
| Management port | 10/100 BASE-T port | |
| Remote management channel | GCC(General Communication Channel) , OSC | |
| Management IP address | Manual Configuration(Console) | |
| Alarm display, Monitoring |
Alarm | Viewable 512 events immediately(GUI), timestamp |
| Power | Power supply Hot Swap |
AC:100V～240V／AC 50/60Hz (Max.5A) DC:-48V DC(Max.12A) |
| Power consumption | 250W | |
| Dimensions Physical specification |
Dimensions | 440mm(W)x285mm(D)x44mm(H), 1U |
| Weight(all components mounting) | Max.7.0kg | |
| Operating Temperature/Humidity | 0℃～45℃/max.90％ (no condensation) |
|
| Approvals | CE/FCC/VCCI/RoHs Compliant | |
