NC1G series (AC type)
10/100/1000BASE-T to 1000BASE-X Media Converter (AC Type)

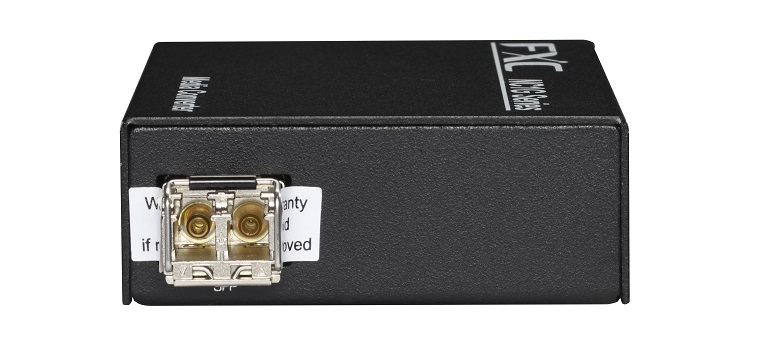

NC1G Series Media Converter is media converter converting 10/100/1000BASE-T and 1000BASE-X mutually. This product is equipped with 10/100/1000Mbps RJ45 port and 1000BASE-X SFP port. This product works with the AC adapter. In addition, this product is equipped with the LFP (Link Fault Pass-through) function, and it helps to investigate the cause when a failure occurs. Our lineup is of the following three types: 1000BASE-SX SFP mounted model, 1000BASE-LX SFP mounted model, Bi-directional 1G SFP (LC or SC) mounted model. And Bidi models are must use A type and B type in 1 pair.
Features
- 10/100/1000Mbps RJ45 port and 1000Mbps SFP port by one each.
- RJ45 port is support Auto-negotiation and Auto MDI/MDI-X
- Flow control for Full Duplex operation and back pressure for Half Duplex operation (IEEE 802.3x)
- Compliant with SFP MSA Specification SFF-8472
- 1000BASE-SX type is up to 550m with 50/125µm MMF
- 1000BASE-LX type and Bidi type are up to 15km with 9/125µm SMF
- Bidi type supports wavelength 1310nm (A type) and 1550nm (B type)
- Support for 1.25Gbps Bit Rate
- Simplex SC/LC Connector Interface
- Supports 9,216 bytes Jumbo Frames
- Supports 2,112 MAC address entries in entire system
- Supports LFP (Link Fault Pass-through) function
- Wire-speed packet filtering and forwarding rate
- Store-and-forward architecture filters fragment & CRC error packets
- EAP/ BPDU/ LACP/ LLDP/ IGMP and Tag Frame Pass through
- FAN less
- Class 1 laser product complies with EN 60825-1
- Temperature Range: 0~ 50 °C
- RoHS compliant
- Reliability compliant with Telcordia (Bellcore)
- GR-468-CORE
- Operate by AC adapter
Spec
| Models | NC1GS | NC1GL | NC1GL15B |
NC1GL15B-SC |
|
|---|---|---|---|---|---|
| Standards | IEEE802.3z, IEEE802.3ab, IEEE802.3u, IEEE802.3, IEEE802.3x | ||||
| Transmission speed | 10/100/1000Mbps (CSMA/CD) | ||||
| Ethernet Ports |
10BASE-T/100BASE-TX/1000BASE-T (MDI /MDI-X Auto) | ||||
| Duplex Auto Negotiation |
Full 1000M/Full |
||||
| Fiber ports | Transceiver | 1000BASE-SX (550m) | 1000BASE-LX (15km) | ||
| Connector | LC Connector | SC Connector | |||
| Duplex Auto Negotiation |
Full 1000M/Full |
||||
| TX Wavelength | 850nm MMF | 1310nm SMF | 1310nm SMF | A: 1310nm SMF B: 1550nm SMF |
|
| Output | -9.5～-3dBm | ||||
| Receiving sensitivity | -17～-0dBm | -20～-3dBm | -21～-3dBm | ||
| Cable | standards | 10/100/1000BASE-T 1000BASE-SX | 10/100/1000BASE-T 1000BASE-LX | ||
| Cable used and Maximum distance | UTP Cat.5e and up 100m 50/125μm MMF 550m 62.5/125μm MMF 275m |
UTP Cat.5e 100m 9/125μm SMF 15km 10/125μm SMF |
|||
| Function | Frame Transparent | link fault pass through (LFP) EAP/BPDU/LACP/LLDP/IGMP, Tag Frame Pass through |
|||
| Transfer speed | Port Assignment | Store & Forward Method | |||
| Maximum Frame Size | Jumbo Frame Size | 9,216bytes | |||
| Through Put | 2.97Mpps(64byte) | ||||
| Latency | 2.5μs (64byte) | ||||
| Frame Buffer | 12Kbytes | ||||
| Buffer Architecture | Port Allocation | Dynamically allocated to each port | |||
| Flash Memory | Capacity | 128K | |||
| MAC Address Table | Method | Self-learning | |||
| Aging Time | 300sec | ||||
| Maximum MAC Address | 2,112 | ||||
| LED Display | Power | Power On (Steady Green), Power Off (Off) | |||
| LAN Link/Act | Valid port connection (Lighting) Data Transmitting / Receiving (Blinking) 1000Mbps: (Green), 10/100Mbps: (Orange) |
||||
| Fiber Link/Act | Valid port connection (Lighting) Data Transmitting / Receiving (Blinking) 1000Mbps: (Green), 10/100Mbps: (Orange) |
||||
| Power Supply / Energy Conservation | Power Supply, Rated Input | AC100-240V, 50/60Hz 0.257A | |||
| Rated Maximum Input Current | 0.257A | ||||
| Maximum Power | 2.61W | ||||
| Maximum Heat | 2.24Kcal/h | ||||
| General specification | Dimensions (W*D*H) | 60(W) × 75(D) ×23(H)mm (SFP not included) | |||
| Weight | 156g (SFP not included) | ||||
| Operation Temperature / Humidity | 0℃～+50℃ / 0%～90% *Non-condensing | ||||
| Storage Temperature / Humidity | -20℃～+70℃ / 5%～90% *Non-condensing | ||||
| Cooling systems | Fan-less | ||||
| Adaptation of EMI | VCCI class A | ||||
| Adaptation of RoHS | RoHS Directive Compliance | ||||
| MTBF | 1,176,474h(25℃) | ||||
| Accessories | Installation Guide & Warranty card x 1 | ||||
