LE2000 Chassis Series

  • Chassis for LE2001-15 1 slot (with built-in AC power source)
  • Chassis for LE2001-45 1 slot (with built-in DC power source)
  • Chassis for LE2002-15 2 slot (with built-in AC power source)
  • Chassis for LE2002-45 2 slot (with built-in DC power source)
  • Chassis for LE2020-15 20 slot (with built-in AC power source)
  • Chassis for LE2020-45 20 slot (with built-in DC power source)

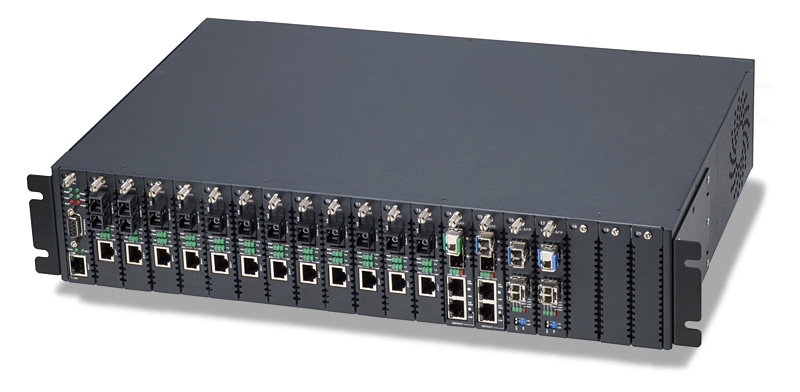

LE2020-15、LE2020-45

View

LE2020-15、LE2020-45

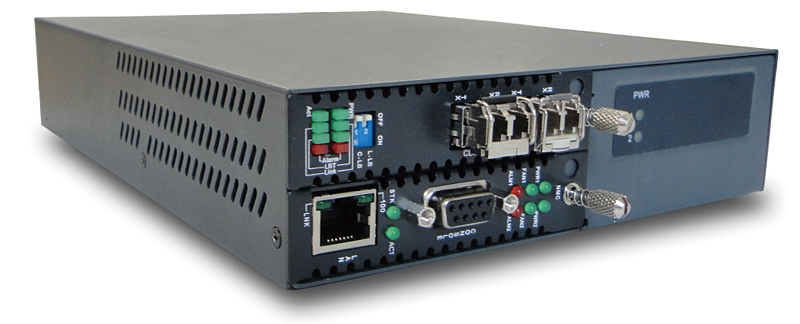

LE2002-15、LE2002-45

View

LE2002-15、LE2002-45

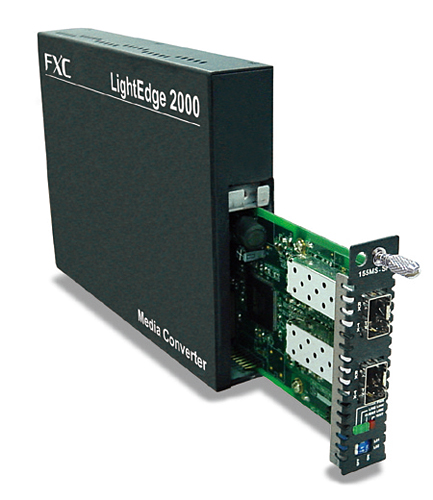

LE2001-15、LE2001-45

View

LE2001-15、LE2001-45

  • LE2020-15、LE2020-45
  • LE2002-15
  • LE2001-15

Features

Major functions of the LE2001-15/45

  • Stand-alone chassis with built-in power source.
  • Two types for AC and DC available.
  • FAN-less design.

Major functions of the LE2002-15/45

  • 2-slot chassis for the LE2000 Series line card.
  • The optionally available management card enables the management of Telnet, Web, console, and SNMP.
  • Supports one double-wide blade or two single-wide blades.
  • Supports rear connection between two slots.
  • AC or DC power can be selected.
  • A cooling fan is included.

Major functions of the LE2020-15/45

  • Up to 20 media converter cards can be contained in the 2U-high case.
  • Up to 10 chassis can be cascaded.
  • Ground contact allows alarm output.
  • Supports the media converter card and transponder card. The Power/FAN units are hot-swappable.
  • The optionally available, redundant power unit can be installed.
  • By installing the optionally available SNMP management card, Web and SNMP can be managed.
  • Equipped with a rack-mount kit as standard.

Spec

Models LE2001-15 LE2001-45 LE2002-15 LE2002-45 LE2020-15 LE2020-45
Maximum number of installable cards 1 2 3
Cooling system natural cooling (fanless) Cooling fan unit x2 Cooling fan unit x2
Power switch ON/OFF Seesaw switch to a power source body nothing Seesaw switch to a power source body
Power characteristics Rated input voltage/frequency AC power AC100-240V(90-264V) / 50/60Hz(43-63Hz)
Rated input voltage/frequency DC power DC48V(36~72V)/50/60Hz(43-63Hz) DC48V(36~72V)/50/60Hz(43-63Hz) DC48V(36~72V)/50/60Hz(43-63Hz)
Maximum input current 1.0A 2.5A 4.0A
Maximum power consumption 12W 30W 300W
Number of cascades - - 10
No-voltage (contact) output - - 2 contacts
User Environmental Operating Temperature/Humidity 0℃~ 50℃/10~90%(no condensation) 0℃~ 50℃/20~80%(no condensation) 0℃~ 50℃/10~90%(no condensation)
Dimensions 180(W)x135(D)x30(H)mm 220(W)x168(D)x45(H)mm 438(W)x302(D)x88(H)mm
Physical specification 620g 1.3kg 5.9kg
Accessories power cable (only AC ver.)、product warranty
